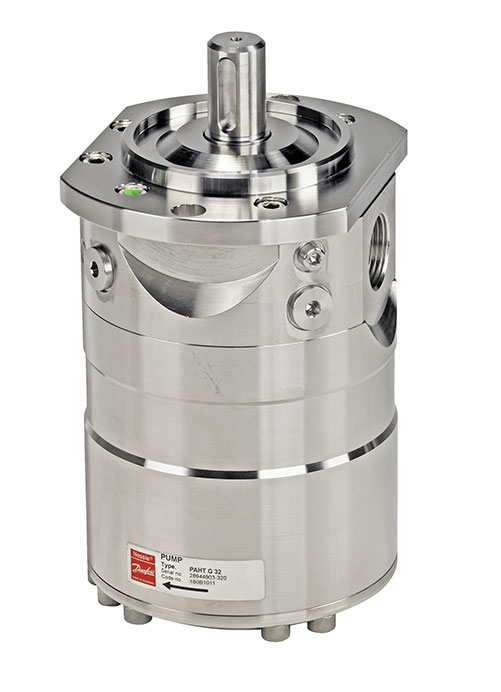

![Danfoss PAHT G 32](/media/1021/paht-g-32.jpg)
Danfoss PAHT G high-pressure pumps are designed for ultra-pure water. PAHT G pumps are developed especially for various gas turbine applications, such as the reduction of NOx emissions in diesel engines, inlet fogging, and wet compression. Lubrication of the moving parts is provided by the water itself. PAHT pumps are the lightest and most compact pumps in the industry and can be installed horizontally or vertically.
They are powered by electric motors or combustion engines and are suitable for boosted inlet pressure and water supply from tank. There is no need for cooling circuits due to very high mechanical efficiency.
Features and Benefits
- Zero risk of oil contamination thanks to the pump’s ultra-clean technology where no oil is needed
- Low maintenance costs thanks to its efficient design and stainless steel construction. Service intervals up to 8,000 hours can be expected
- Low energy costs due to its highly efficient axial piston design
- Compact design. Easy installation
- ISO 9001, ISO 14001 and ATEX certified (API available on request)
Uses/Applications
- Adiabatic cooling systems
- Dust suppression and odour control systems
- Humidification industry
- Fire suppression
- Compressor wash
- NOx-control in Diesel engines
- High-pressure cleaning functions with DI/RO water
Technical Specifications
Ambient temperature [°C] [Max] | 50 °C |
Ambient temperature [°C] [Min] | 0 °C |
Ambient temperature [°F] [Max] | 122 °F |
Ambient temperature [°F] [Min] | 32 °F |
Body material | AISI 316 |
Country of origin | Denmark |
Description | Pump for ultra pure water |
Displacement [cm³/rev] | 25 cm3/rev |
Displacement [in³/rev] | 1.53 in3/rev |
Drain connection size (metric) | M6 |
Drain connection standard | Metric |
Drain connection type | Thread |
Flow [gpm] [Max] | 13.57 gal/min |
Flow [gpm] [Min] | 3.38 gal/min |
Flow [l/min] [Max] | 52.2 L/min |
Flow [l/min] [Min] | 12.99 L/min |
Gross weight | 23.65 Kg |
Inlet connection size [in] | 1 1/4 in |
Inlet connection standard | BSPP |
Inlet connection type | Thread |
Inlet pressure [barg] [Max] | 6 barg |
Inlet pressure [barg] [Min] | 0 barg |
Inlet pressure [psig] [Max] | 87 psig |
Inlet pressure [psig] [Min] | 0 psig |
Inlet pressure peak [barg] [Max] | 20 barg |
Inlet pressure peak [psig] [Max] | 290 psig |
Media temperature [°C] [Max] | 50 °C |
Media temperature [°C] [Min] | 2 °C |
Media temperature [°F] [Max] | 122 °F |
Media temperature [°F] [Min] | 36 °F |
Net weight | 17.62 Kg |
Outlet connection size [in] | 3/4 in |
Outlet connection standard | BSPP |
Outlet connection type | Thread |
Outlet pressure [barg] [Max] | 160 barg |
Outlet pressure [barg] [Min] | 30 barg |
Outlet pressure [psig] [Max] | 2320 psig |
Outlet pressure [psig] [Min] | 435 psig |
Product group | Pump |
Seal Material | NBR |
Serviceable | Yes |
Sound pressure level [dB(A)] | 79 dBA |
Speed continuous[rpm] [Min] | 1000 rpm |
Speed [rpm] [Max] | 2400 rpm |
Speed [rpm] [Min] | 700 rpm |
Type | PAHT G |
Type | PAHT G 25 |
